2.4m Single Axle Mobile Freezer Trailer

Specifications

• Typical Dimensions & Capacity:
• Box / Internal Dimensions: 2.4m in length, 1.6m in width and 1.8m in height
• Axle & Suspension: Single axle configuration.
• Load Capacity: Generally handles a payload or total mass of around 500kg to 750kg (with some configurations rated up to 1.3 tons depending on the build)
• Cooling & Performance:
• Temperature Range: Capable of operating as a chiller or a deep freezer, with adjustable thermostats typically reaching down to -8°C to -15°C (some units go down to -20°C depending on the motor strength, e.g., 1hp to 12,000 BTU systems).
• Insulation: Built with high-density polyurethane insulated panels (often around 75mm thick) for optimal thermal retention.
• How They Are Powered When Stationary:
• Once parked at your destination or event site, these trailers run on:
• Mains Electricity: A standard domestic 220V / 240V electrical outlet (via a heavy-duty extension cable) .
• Standalone Generator: A portable petrol or diesel generator (typically rated at 4kVA to 5kVA or higher) if main power is unavailable.
• Build & Standard Features:
• Chassis & Wheels: Fitted with 13-inch tires/rims, a heavy-duty jockey wheel with a clamp, and 2 or more stabilizer legs for secure stationary use.

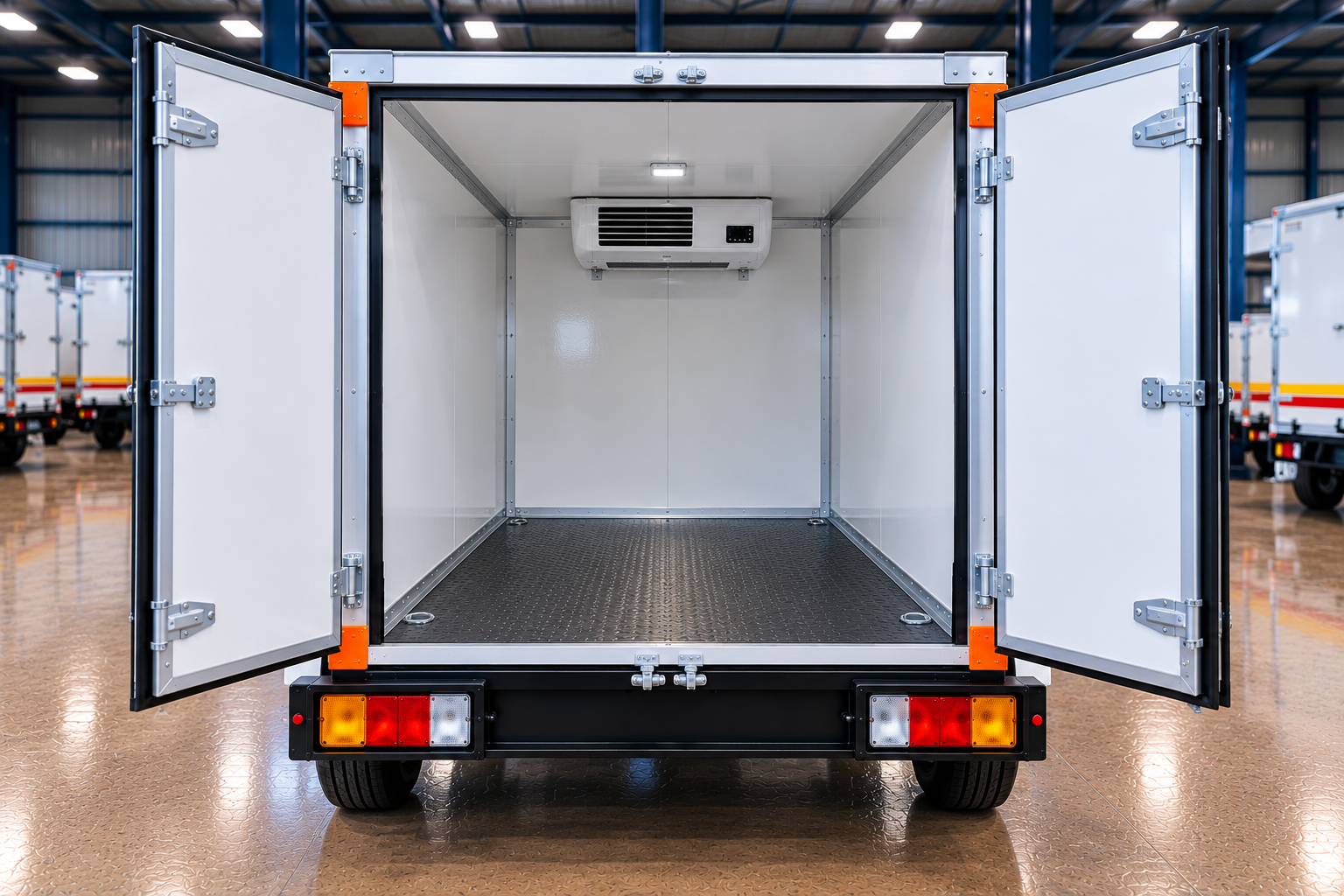

• Door & Interior: Includes a lockable refrigerated door (sometimes equipped with anti-freeze/heating wire around the seal to prevent freezing shut) and easy-to-clean interior surfaces.
• Legal / Road Prep: Usually supplied with registration papers and a roadworthy certificate for towing on public roads.
