Utility Trailer · SKU AT-UT-240

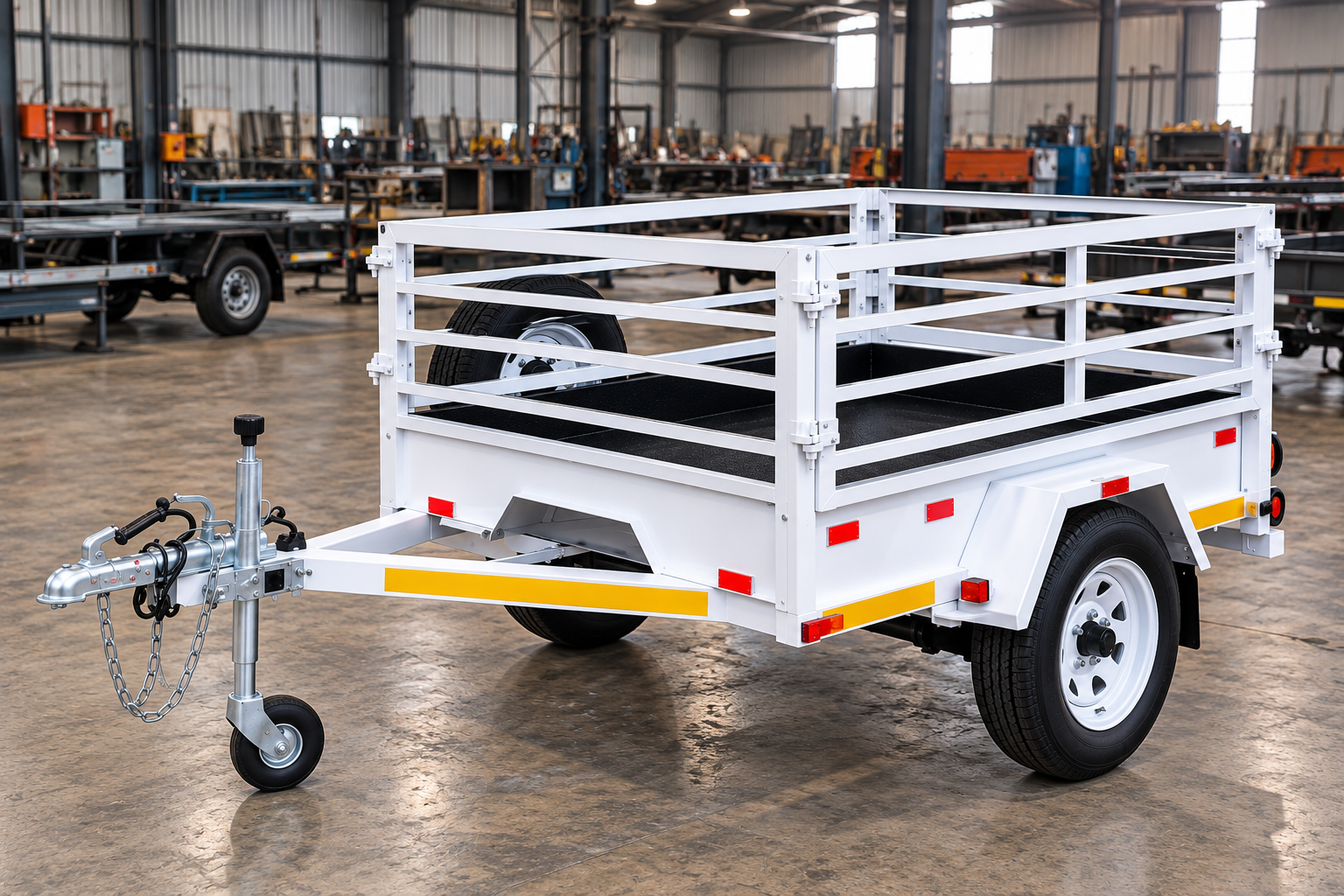

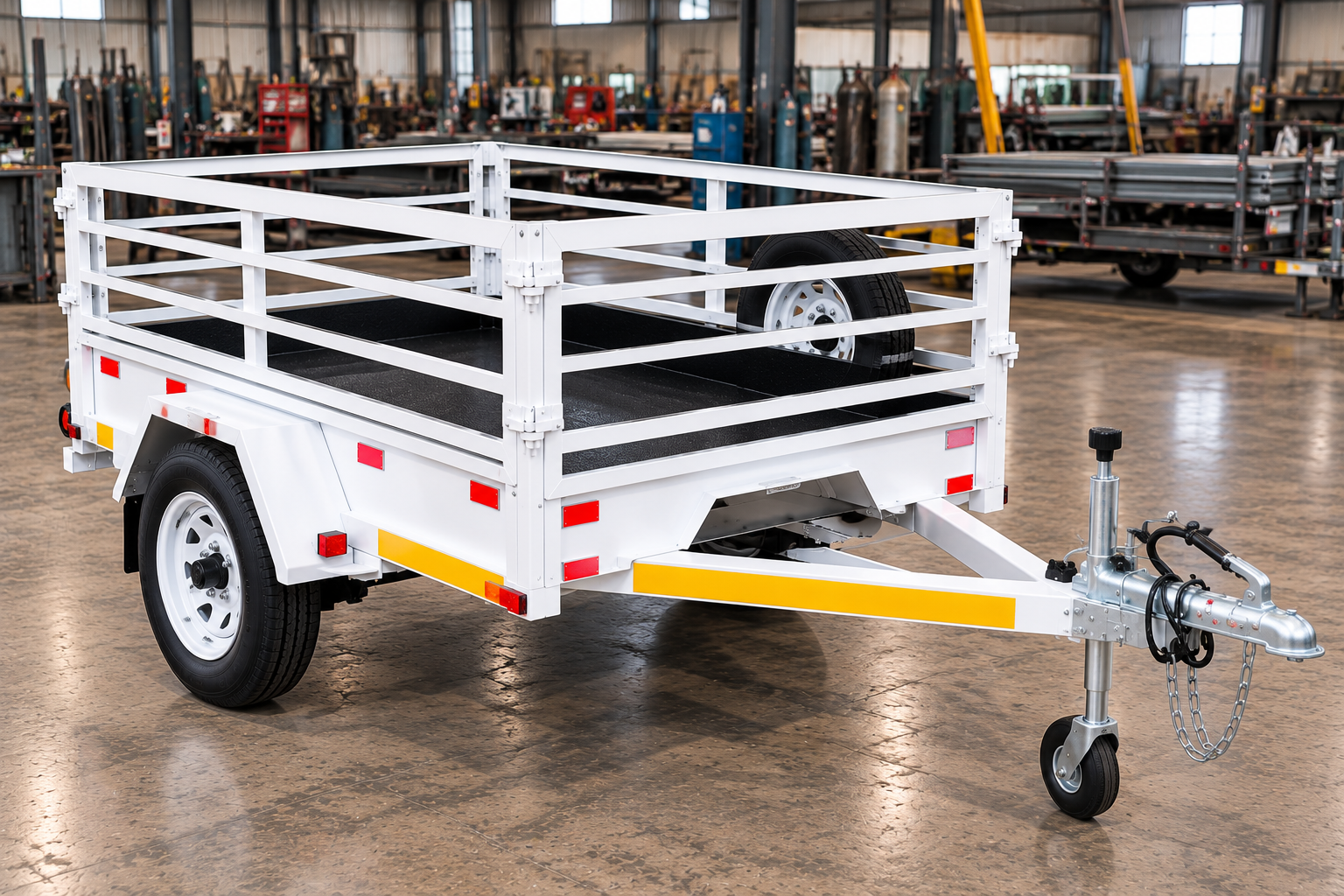

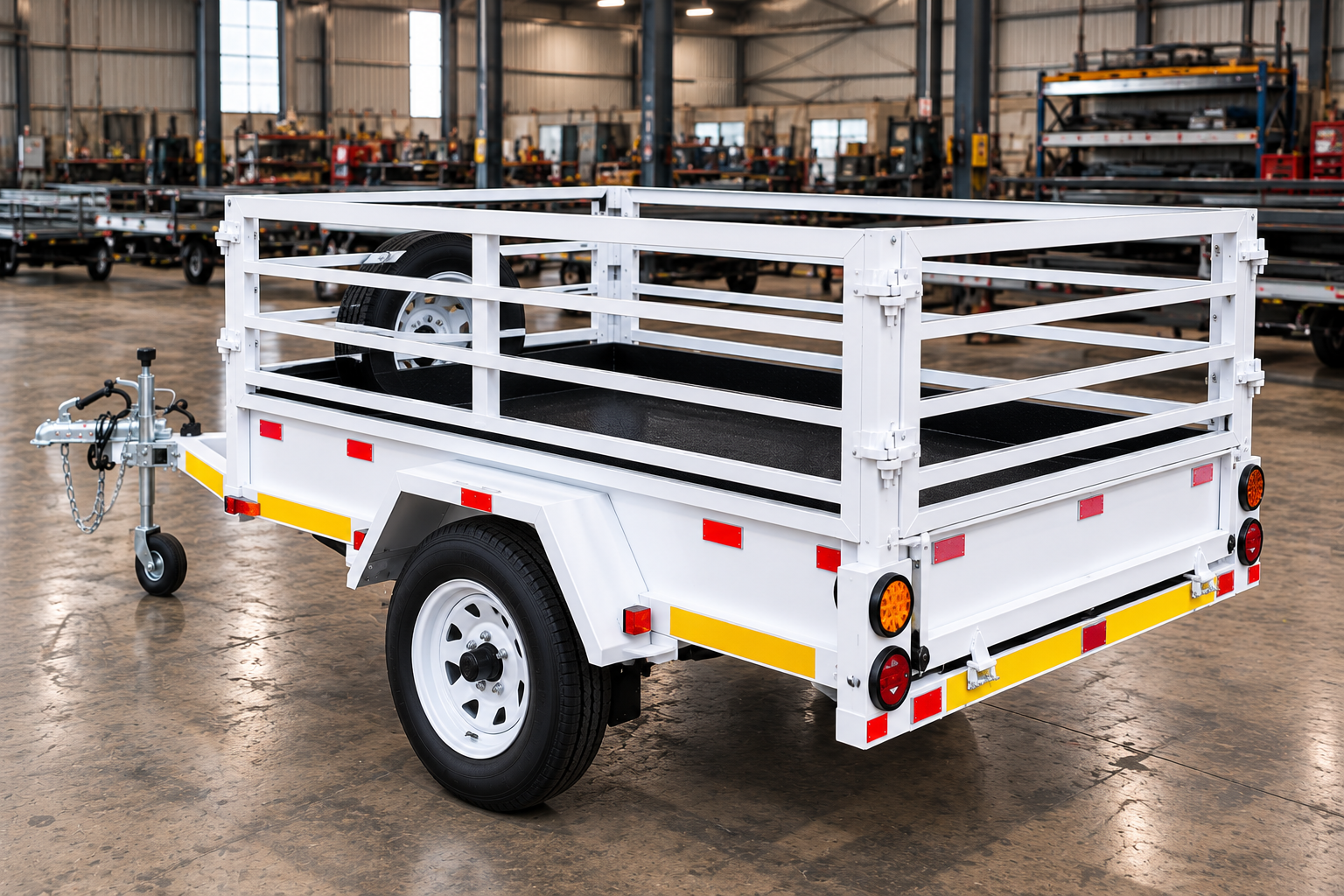

2.4m Single Axle-Unbraked (Light Duty) Utility Trailer 750kg GVM
R 20 000.00
Price in ZAR. Delivery charges, if any, are quoted before payment.
Made to order — manufactured in 2–3 working days after your order is confirmed
A tough, galvanized single axle utility trailer fabricated to order in South Africa. Ideal for garden refuse, building materials and everyday hauling which comes with a 13-inch or 14-inch wheels, a 1.6mm steel sheet floor, and an A-frame draw-bar with a 42mm jockey wheel
- Dimensions
- 2.4m length x 1.5m width (deck size)
- Load capacity
- 750 kg
- Tare weight
- 250 kg
- Condition
- New (built to order)
- Fulfilment
- Delivery or collection
- Brand
- Access Trailers
Specifications
- *Dimensions & Capacity
- -Internal / Bed Length: 2.4 m.
- -Internal / Bed Width: 1.5 m.
- -Side / Rail Height: Typically 0.3m (flat/drop-side) up to 0.8m–1.0m with high mesh or square tube rails.
- -Gross Vehicle Mass (GVM): 750 kg.
- -Axle Rating: 750 kg or 1 500 kg un-braked single axle.
- *Chassis & Build Materials
- -Floor: 1.6 mm thick sheet-metal plate (or optional 2 mm lipped channel).
- -A-Frame: Heavy-duty steel channel (e.g., 100mm x 50mm or 76mm x 38mm open channel).
- -Chassis Frame: Rectangle or square tubing (e.g., 76mm x 38mm x 2mm).
- -Finish / Paint: 2K Duco paint (common colors: white, grey, brown) or full galvanization.
- *Running Gear & Suspension
- -Suspension: 3-blade to 5-blade leaf spring setup
- -Wheels & Tyres : 13-inch or 14-inch wheels with a matching spare wheel mounted on the A-frame
- -Jockey Wheel: 42mm front-mounted jockey wheel
- -Coupler: Standard un-braked ball coupler
- *Electrical & Extras
- - Lighting: 12V LED / 3-in-1 truck-style stop, tail, and indicator lights.
- -Tailgate: Rear swing or drop-down tailgate with-cattle pins or anti-loose fasteners.
- -Tie-Downs: Rope hooks or side tie-down rails integrated around the perimeter.
